Extron TLP 700MV TouchLink™

(SKU #TLP 700MV)

The Extron TLP 700MV TouchLink™ 7" Wall Mount Touchpanel is designed to mount securely into a wall, lectern, or other flat surface. In addition to the seven-inch, full-color high resolution touchscreen, the ten field-labelable backlit buttons provide expanded control capabilities to ensure that critical functions are easily accessible. The TLP 700MV touchpanel enables integrators to deploy a fully configurable surface-mounted touchscreen control interface with a sophisticated, high tech appearance.

The available GUI Configurator and Global Configurator software is used to set up the TLP 700MV with ready-to-use templates for a single projector room, dual display room, divisible room, multi-image system, and video conference suites. An integrated Ethernet port provides communication with Extron IP Link®-enabled control processors for controlling and monitoring A/V equipment such as projectors, displays, switchers, and source devices over a standard Ethernet network.

Features

• 7” widescreen high resolution touchscreen
• Ten field-labelable backlit buttons for expanded control
• User-friendly volume knob for simple and intuitive volume control
• Full motion video for use as a preview, confidence monitor, or security camera monitor
• Integrated Ethernet port compatible with IP Link-enabled control processors
• Built-in speaker provides audible feedback when a button is pressed
• Configurable display sleep timer saves energy
• Motion detector senses movement near the screen, waking the panel from an energy saving mode
• Auto dimming feature adjusts touchscreen brightness as room lighting changes
• Automatic clock synchronization with controller for accurate time/date display
• Front bezel without buttons included for touchscreen-only applications
• Mounts on a wall, lectern, or any flat surface
• Optional rack mount and back box kits
• GUI Configurator software for template-based touchscreen layout design
• Easy control system setup using included Global Configurator software - no programming required
• UL/CL listed and CE compliant
• External universal power supply included

The Extron TLP 700MV TouchLink™ 7" Wall Mount Touchpanel is designed to mount securely into a wall, lectern, or other flat surface. In addition to the seven-inch, full-color high resolution touchscreen, the ten field-labelable backlit buttons provide expanded control capabilities to ensure that critical functions are easily accessible. The TLP 700MV touchpanel enables integrators to deploy a fully configurable surface-mounted touchscreen control interface with a sophisticated, high tech appearance.

The available GUI Configurator and Global Configurator software is used to set up the TLP 700MV with ready-to-use templates for a single projector room, dual display room, divisible room, multi-image system, and video conference suites. An integrated Ethernet port provides communication with Extron IP Link®-enabled control processors for controlling and monitoring A/V equipment such as projectors, displays, switchers, and source devices over a standard Ethernet network.

Features

• 7” widescreen high resolution touchscreen
• Ten field-labelable backlit buttons for expanded control
• User-friendly volume knob for simple and intuitive volume control
• Full motion video for use as a preview, confidence monitor, or security camera monitor
• Integrated Ethernet port compatible with IP Link-enabled control processors
• Built-in speaker provides audible feedback when a button is pressed
• Configurable display sleep timer saves energy
• Motion detector senses movement near the screen, waking the panel from an energy saving mode
• Auto dimming feature adjusts touchscreen brightness as room lighting changes
• Automatic clock synchronization with controller for accurate time/date display
• Front bezel without buttons included for touchscreen-only applications
• Mounts on a wall, lectern, or any flat surface
• Optional rack mount and back box kits
• GUI Configurator software for template-based touchscreen layout design
• Easy control system setup using included Global Configurator software - no programming required
• UL/CL listed and CE compliant
• External universal power supply included

See Sales Brochure

(SKU #TLP 700TV)

Description

The Extron TLP 700TV TouchLink 7" Tabletop Touchpanel is designed for tabletop use with up to 45° of tilt or VESA mounting. In addition to the seven-inch, full-color high resolution touchscreen, the ten field-labelable backlit buttons provide expanded control capabilities to ensure that critical functions are easily accessible. The TLP 700TV touchpanel enables integrators to deploy a fully configurable tabletop touchscreen control interface with a sophisticated, high tech appearance.

Features



• 7” widescreen high resolution touchscreen



• Ten field-labelable backlit buttons for expanded control



• User-friendly volume knob for simple and intuitive volume control



• Full motion video for use as a preview, confidence monitor, or security camera monitor



• Integrated Ethernet port compatible with Extron IP Link-enabled control processors



• Built-in speaker provides audible feedback when a button is pressed



• Configurable display sleep timer saves energy



• Motion detector senses movement near the screen, waking the panel from an energy saving mode



• Auto dimming feature adjusts touchscreen brightness as room lighting changes



• Automatic clock synchronization with controller for accurate time/date display



• Weighted base allows up to 45° of tilt



• Sits on a tabletop or on a VESA standard mount with optional adapter



• GUI Configurator software for template-based touchscreen layout design



• External universal power supply included

Specifications

TLP 700TV
Display
Screen type	Active matrix TFT color display
Size	7" (17.8 cm), measured diagonally
Resolution	800x480
Aspect ratio	Widescreen
Color depth	18 bit, 256k colors
Transparency	8 bit alpha channel
Brightness	400 nits (cd/m2)
Contrast	300:1
Backlight	High bright LED
Viewing angle	±70° horizontal, +50°/-70° vertical
Touch screen	Resistive membrane
Memory
SDRAM	128 MB for graphics processing 8 MB for system use
Flash	32 MB for project storage 16 MB for system use
Control  — Ethernet interface
Ethernet control/communications port	With base attached: 1 female RJ-45 connector Without base: 1 RJ-45 male connector on a pigtail
Ethernet data rate	10/100Base-T, half/full duplex with autodetect
Ethernet protocol	ICMP, IP, TCP (control), UDP, DHCP, Telnet
Default settings	Link speed and duplex level: autodetected IP address = 192.168.254.254 Subnet mask = 255.255.0.0 Default gateway = 0.0.0.0 DHCP = off
Program control	Extron Global Configurator 3.0 or higher GUI Configurator for Windows® Extron Simple Instruction Set (SIS™) Microsoft® Internet Explorer® ver. 6 or higher, Telnet
Control  — touch screen
Motion sensor	On/off
Light sensor	On/off
External buttons	10 backlit, dual color (white, blue), field labelable
Video input  — see S-video or composite video MTP transmitters' specifications
Number/signal type	1 S-video or composite video
Connectors	With base attached: 1 female RJ-45 connector Without base: 2 male BNC connectors on pigtails
Standards	NTSC, PAL
Audio input  — see S-video or composite video MTP transmitters' specifications
NOTE     Audio input is available only from an Extron MTP transmitter through the RJ-45 connector in the unit's base. If the base is removed from the TLP 700TV, connections are via BNC connectors, and there is no audio input.
Number/signal type	1 stereo, balanced/unbalanced, line level, as part of a set of proprietary signals from an Extron MTP
Connector	1 female RJ-45 (shared with video input)
Audio output
Speaker output	1 mono, 80 dB SPL, 0.1 watt, 0.1 m, half space
Frequency response	500 Hz to 16 kHz, ±5 dB
Playback format(s)	WAV files: 8 bit PCM, mono, 8 kHz sampling
General
External power supply	100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated
Power input requirements	+12 VDC, 0.75 A
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on top rear
Mounting
Furniture or wall mount	Set on tabletop or mount to optional VESA D 75 mm panel mount kit
Adjustment ranges	Tilts through a 45° range
Enclosure type	Plastic

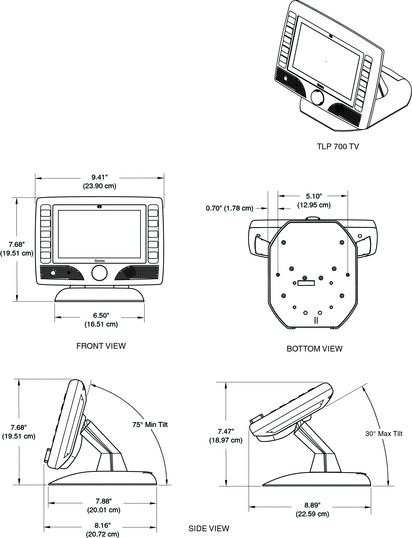

Enclosure dimensions	7.7" H x 9.4" W x 8.2" D (19.6 cm H x 23.9 cm W x 20.7 cm D) (Includes base.  Total height and depth depends on screen tilt. See the following diagrams.)
Product weight	2.3 lbs (1.0 kg)
Shipping weight	5 lbs (3 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety	CE, c-UL, UL
EMI/EMC	CE, C-tick, FCC Class A, ICES, VCCI
Environmental	Complies with the applicable requirements of RoHS and WEEE.
MTBF	30,000 hours
Warranty	3 years parts and labor; touchscreen display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(7.6-080609-D3)



The available GUI Configurator and Global Configurator software is used to set up the TLP 700TV with ready-to-use templates for a single projector room, dual display room, divisible room, multi-image system, or video conference suites. An integrated Ethernet port provides communication with IP Link®-enabled control processors for controlling and monitoring A/V equipment such as projectors, displays, switchers, and source devices over a standard Ethernet network.

See Sales Brochure
